CAT 6 UTP KEYSTONE JACKS P/N : LNKA09-KJUC6
Description :
This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposed Category 6 standards, new feature of this series jack is a universal colored wiring label that eliminates the need for separate codes for T568A/B wiring scheme.
This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposed Category 6 standards, new feature of this series jack is a universal colored wiring label that eliminates the need for separate codes for T568A/B wiring scheme.
Application :
- Available in Cat 6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements
- Housing : high temperature thermoplastic
- Compact jack design, 8 positions and 8 conductors
- Contact : phosphor bronze, phosphor bronze with 6 to 50µ” gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors
| Construction | |
| Description | Parameter |
| Contact resistance (max) | 100m Ω |
| Insulation resistance (min) | 500m Ω |
| Return loss (dB) | 5.8 dB |
| Next (dB) | 4.7 dB |
| Ps next (dB) | 5.5 dB |

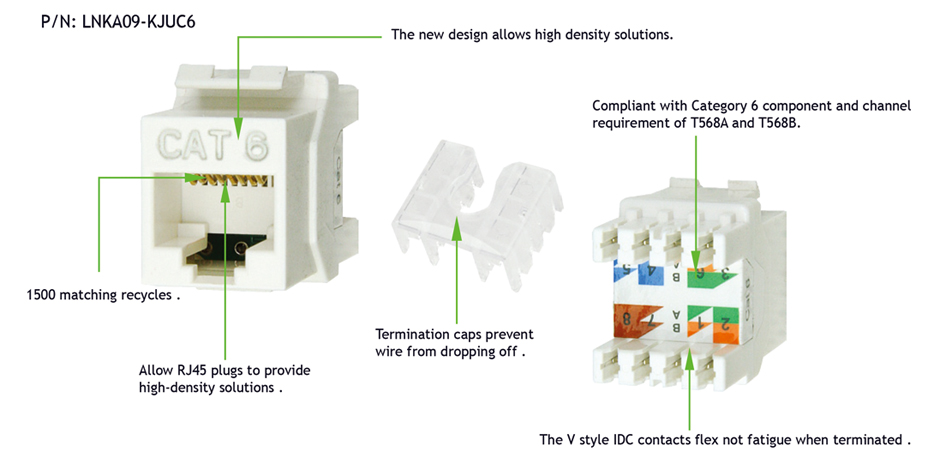

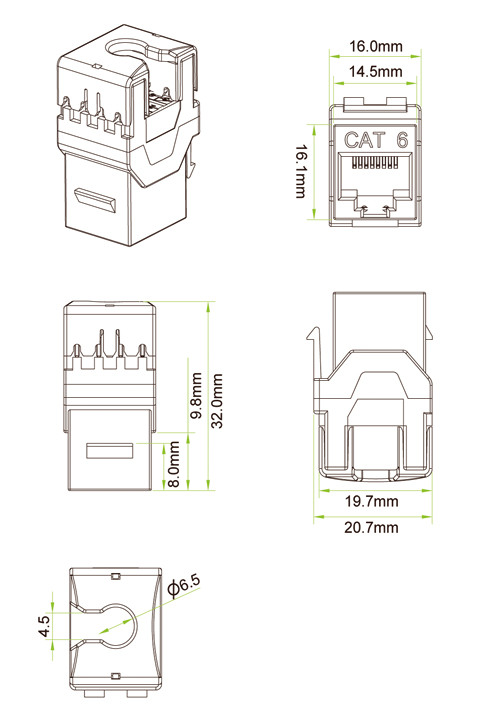

Product Figure :
Installment Instructions :
View the color on the module to determine proper location of the conductors based upon preferred wiring scheme.
Location of the conductors based upon preferred wiring scheme. Fan out cables based on desired wiring scheme, cut the pair separator and rip cord (if present) as close as possible to the jacket. Nore : Be careful not to nick conductors.
Insert each wire into the appropriate channel according to the color code on the module, keep the cable perpendicular to the block.
Terminate wires with Linkconn or equivalent tools.
Install dust caps by snapping into place as shown. Note : The cable jacket should remain outside the dust caps as shown.
Install dust caps by snapping into place as shown.

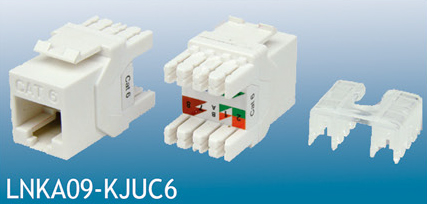

Cat 6 UTP keystone jacks (180 degree)

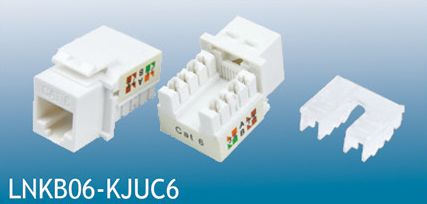

Cat 6 UTP keystone jacks (90 degree)
Cat 6 UTP Through coupler
| Order Information | ||||||
| Part Number | Description | Standard color | Inner box | Carton | Carton measurement | Carton weight |
| LNKA09-KJUC6 | Cat6 unshielded keystone jacks (180 degree) | White | 25 PCS | 250 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 3.80 KG |
| LNKA06-KJUC6 | Cat6 unshielded keystone jacks (90 degree) | White | 25 PCS | 250 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 4.20 KG |
| LNK11-KJUC6 | Cat6 unshielded through coupler | Beige | 25 PCS | 250 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 3.50 KG |
