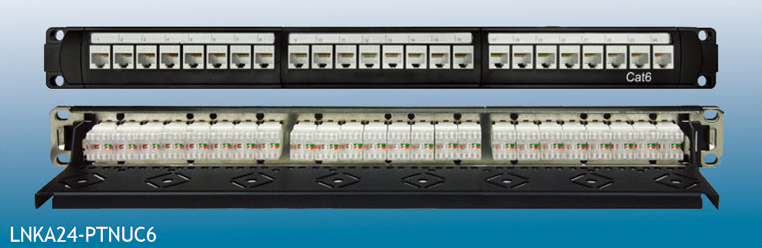

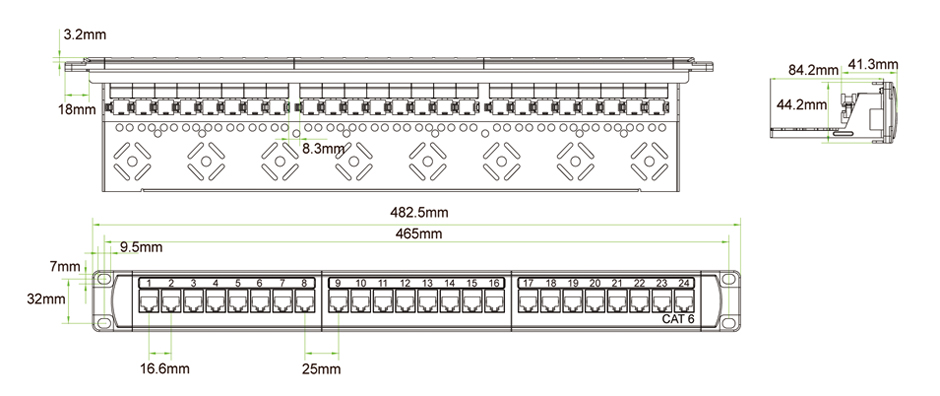

CAT 6 UTP 24-PORT PATCH PANEL P/N : LNKA24-PTNUC6
Description :
The shielded patch panels are loaded with shielded keystone jacks, which are housed in a closure full shielding metal enclosure designed to meet highest industry requirement. A shielded version is also available to maximum protection from EMI / RFI interference. By utilizing fully shielded jacks and connecting hardware, you can reduce the effects of interference on the network data transmissions.
The shielded patch panels are loaded with shielded keystone jacks, which are housed in a closure full shielding metal enclosure designed to meet highest industry requirement. A shielded version is also available to maximum protection from EMI / RFI interference. By utilizing fully shielded jacks and connecting hardware, you can reduce the effects of interference on the network data transmissions.

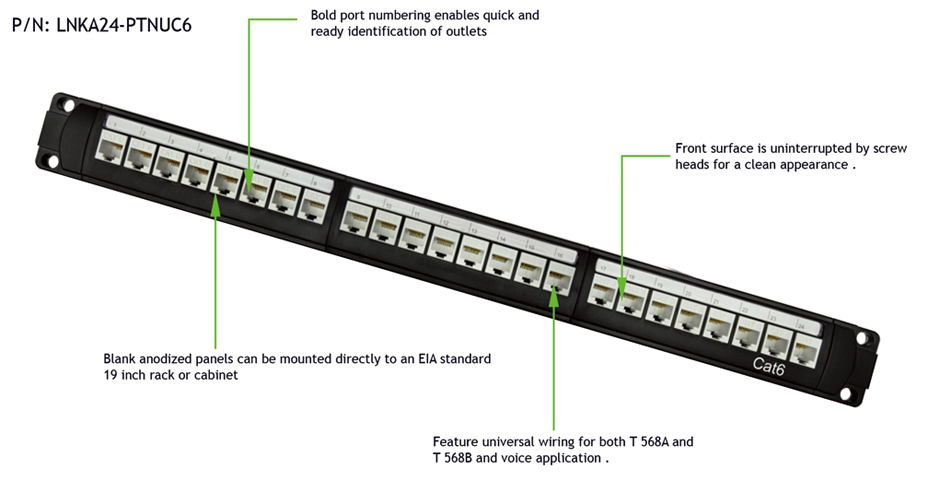

Features And Benefits :
- Design to mount any standard 19” rack or cabinet
- 24 – port Cat 6A shielded Patch panel
- Space saving, high-density 1U
- Black Electrostatic Power – Coated Steel : Phosphor bronze with tin plating over nickel. Meet or exceed the requirement of ANSI / TIA / EIA 568B.2
- Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes.
- Sturdy Aluminium Plate around RJ 45 Jacks
- Phosphor bronze with 6-50 micro inches gold plated
- Available with T568 A. T568 B wiring pattern and meeting the requirement of Cat 6A Standard
- Color Coded TIA / EIA 568A (international) and 568B (AT&T Standard)
- Wiring For Easy Installation
- Termination accepts 22,24,26 AWG (0.64, 0.5 and 0.4) solid wires
- Metal Sheet : Corrosion resistant steel
- Plastic : fire self – extinguish high impact plastic
| Construction | |
| Description | Parameter |
| Contact resistance (max) | 100m Ω |
| Insulation resistance (min) | 500m Ω |
| Return loss (dB) | 5.8 dB |
| Next (dB) | 4.7 dB |
| Ps next (dB) | 5.5 dB |
Installment Instructions :
The bracket of Cat 6 patch panel.
Position the shielded keystone jack for installation.
Insert the jack into the mounting location properly.
Cat 6 UTP 24-port patch panel
Cat 6 UTP 24-port patch panel
Cat 6 UTP 24-port patch panel
Empty panel.
| Order Information | ||||||
| Part Number | Description | Standard color | Inner box | Carton | Carton measurement | Carton weight |
| LNKA24-PTNUC6 | 24-port Cat6 unshielded patch panels (jack style) (LNKA09-KJUC6) | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 10.00 KG |
| LNKD24-PTNUC6 | 24-port Cat6 ununshielded patch panels (IDC style) | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 8.20 KG |
| LNKS24-PTNUC6 | 24-port Cat6 ununshielded patch panels (IDC style) | Black | 1 PCS | 5 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 8.60 KG |
| LNKA24-PTNKJ | Empty panel | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 7.80 KG |
