CAT 5E FTP KEYSTONE JACKS P/N : LNKG06-KJSC5E
Description :
The new style Jack provides Category 5E system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high density connectivity in the work area and telecommunications room.
The new style Jack provides Category 5E system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high density connectivity in the work area and telecommunications room.
Application :
- Available in Cat 5E, T568A/B wiring, meet or exceed TIA/EIA Cat5E requirements
- Shielding protects against EMI/RFI interference
- Housing : high temperature thermoplastic
- Compact jack design, 8 positions and 8 conductors
- Contact : phosphor bronze, phosphor bronze with 6 to 50µ” gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors
| Construction | |
| Description | Parameter |
| Contact resistance (max) | 100m Ω |
| Insulation resistance (min) | 500m Ω |
| Return loss (dB) | 5.8 dB |
| Next (dB) | 4.7 dB |
| Ps next (dB) | 5.5 dB |

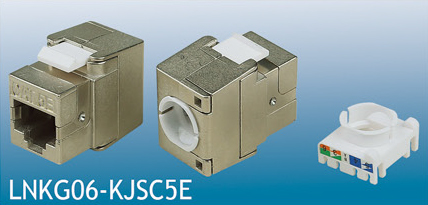

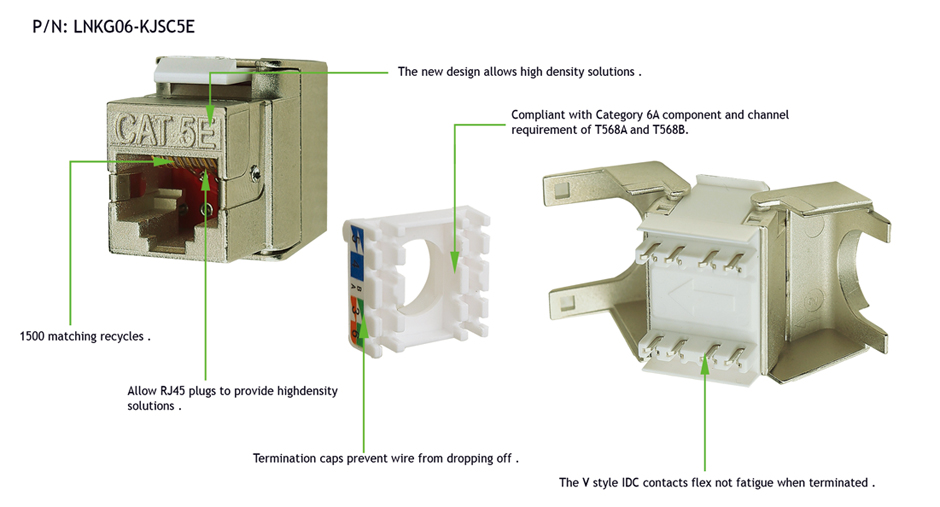

Product Figure :
Installment Instructions :
Strip the cable outer jacket.
Cut the cross filler and rip cord (if present) as close as possible to the jacket.
Insert the wire into the appropriate channel according to the color code on the module.
Cut the extra wire.
Close the termination cap according to the color code.
Close the side cap.
Wrap the conduction wire on the tall of the keystone jack.
Termination finished.

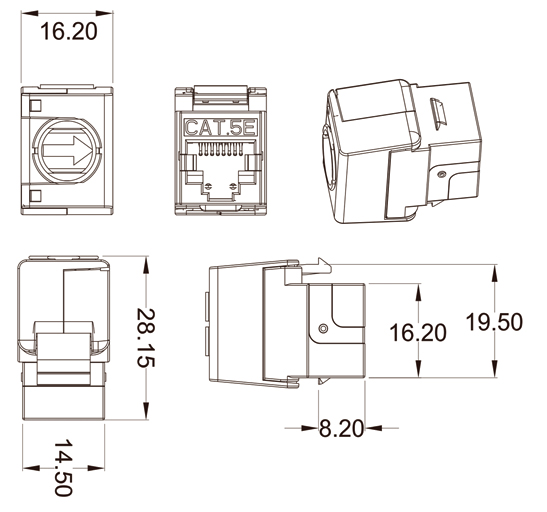

Cat 5E FTP Keystone Jack (180 degree)

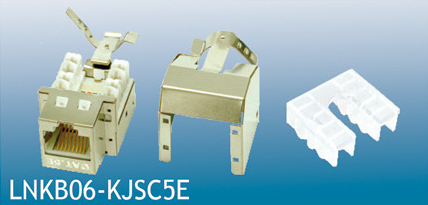

Cat 5E FTP Keystone Jack (90 degree)
| Order Information | ||||||
| Part Number | Description | Standard color | Inner box | Carton | Carton measurement | Carton weight |
| LNKG06-KJSC5E | Cat5E shielded keystone jacks (180 degree) | Silver | 20 PCS | 200 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 9.20 KG |
| LNKB06-KJSC5E | Cat5E shielded keystone jacks (90 degree) | Silver | 20 PCS | 200 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 5.60 KG |
