CAT 5E UTP KEYSTONE JACKS P/N : LNKB06-KJSC5E
Description :
Horizontal style Cat5E 90 degree keystone jacks, it features dual color-coded wiring label with both T568A/B wiring pattern. Rear termination field for easy termination of a jack while installed in a wall plate, surface mount boxes, and blank patch panels for a wide variety of Applicaitons.
Horizontal style Cat5E 90 degree keystone jacks, it features dual color-coded wiring label with both T568A/B wiring pattern. Rear termination field for easy termination of a jack while installed in a wall plate, surface mount boxes, and blank patch panels for a wide variety of Applicaitons.
Application :
- Available in Cat 5E, T568A/B wiring, meet or exceed TIA/EIA Cat5E requirements
- Housing : high temperature thermoplastic
- Compact jack design, 8 positions and 8 conductors
- Contact : phosphor bronze, phosphor bronze with 6 to 50µ” gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors
| Construction | |
| Description | Parameter |
| Contact resistance (max) | 100m Ω |
| Insulation resistance (min) | 500m Ω |
| Return loss (dB) | 5.8 dB |
| Next (dB) | 4.7 dB |
| Ps next (dB) | 5.5 dB |

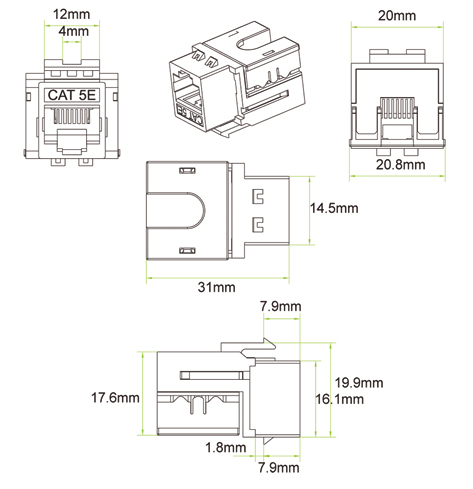

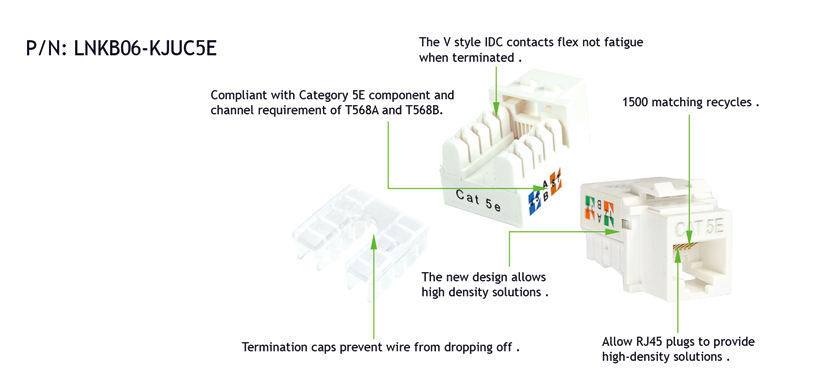

Product Figure :
Installment Instructions :
Strip back cable jacket using Linkconn tool (P/N : LNKTLD01) or equivalent.
View the color on the module to determine proper location of the conductors based upon preferred wiring scheme.
Insert each wire into the appropriate channel according to the color code on the modular’s both sides.
Terminate wires using Linkconn tool (P/N : LNKTLA01) or equivalent.
Install dust caps by snapping into plaace as shown.
Cat 5E UTP Keystone Jack (90 Degree)
Cat 5E UTP Keystone Jack (180 Degree)
Single Coupler
Dual Coupler
Cat 5E UTP Through Coupler
| Order Information | ||||||
| Part Number | Description | Standard color | Inner box | Carton | Carton measurement | Carton weight |
| LNKA09-KJUC5E | Cat5E unshielded keystone jacks (180 degree) | White | 25 PCS | 250 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 3.80 KG |
| LNKB06-KJUC5E | Cat5E unshielded keystone jacks (90 degree) | White | 25 PCS | 250 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 4.20 KG |
| LNKE01-KJUC5E | Cat5E unshielded | White | 20 PCS | 200 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 8.50 KG |
| LNKE02-KJUC5E | Cat5E unshielded | White | 25 PCS | 400 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 9.30 KG |
| LNKE11-KJUC5E | Cat5E unshielded | Beige | 20 PCS | 200 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 3.50 KG |
