CAT 5E UTP 24-PORT PATCH PANEL P/N : LNKD24-PTNUC5E
Description :
The patch panel is a 19 inch rack mountable RJ45 jack panels, Each panel has cut outs that accept virtually all snap in jacks, the kits includes the new icon labels with plastic holders that you mount on the front of the panel for easy port identification. Blank anodized panels can be mounted directly to an EIA standard 19 inch relay back or cabinets.
The patch panel is a 19 inch rack mountable RJ45 jack panels, Each panel has cut outs that accept virtually all snap in jacks, the kits includes the new icon labels with plastic holders that you mount on the front of the panel for easy port identification. Blank anodized panels can be mounted directly to an EIA standard 19 inch relay back or cabinets.
Features And Benefits :
- Design to mount any standard 19” rack or cabinet
- 24 – port Cat 5E shielded Patch panel
- Space saving, high-density 1U
- Black Electrostatic Power – Coated Steel : Phosphor bronze with tin plating over nickel. Meet or exceed the requirement of ANSI / TIA / EIA 568B.2
- Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes.
- Sturdy Aluminium Plate around RJ 45 Jacks
- Phosphor bronze with 6-50 micro inches gold plated
- Available with T568 A. T568 B wiring pattern and meeting the requirement of Cat 5E Standard
- Color Coded TIA / EIA 568A (international) and 568B (AT&T Standard)
- Wiring For Easy Installation
- Termination accepts 22,24,26 AWG (0.64, 0.5 and 0.4) solid wires
- Metal Sheet : Corrosion resistant steel
- Plastic : fire self – extinguish high impact plastic

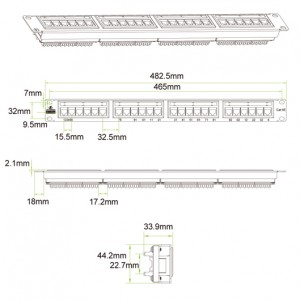

Product Figure :
Installment Instructions :
View the color on the rear of the panel to determine proper location of the conductors based upon preferred wiring scheme.
Insert each wire into the appropriate channel according to the color code on the panel.
Terminate wires using Linkconn tool (P/N : LNKTLA01) or equivalent.
Inspect wires to ensure proper colour coding following termination.

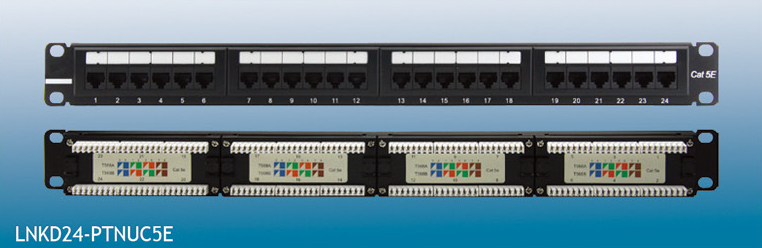

Cat 5E UTP 24-port patch panel
Cat 5E UTP 24-port patch panel
Cat 5E UTP 24-port patch panel
Empty panel
| Order Information | ||||||
| Part Number | Description | Standard color | Inner box | Carton | Carton measurement | Carton weight |
| LNKD24-PTNUC5E | 24-port Cat5E unshielded patch panels (IDC style) | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 8.20 KG |
| LNKA24-PTNUC5E | 24-port Cat5E unshielded patch panels (jack style)(LNKA08-KJUC5E) | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 10.00 KG |
| LNKS24-PTNUC5E | 24-port Cat5E unshielded patch panels (IDC style) | Black | 1 PCS | 5 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 8.60 KG |
| LNKSA24-PTNKJ | Empty panel | Black | 1 PCS | 10 PCS | L 53.5cmxW 31.3cmxH 23.4 cm | 7.80 KG |
