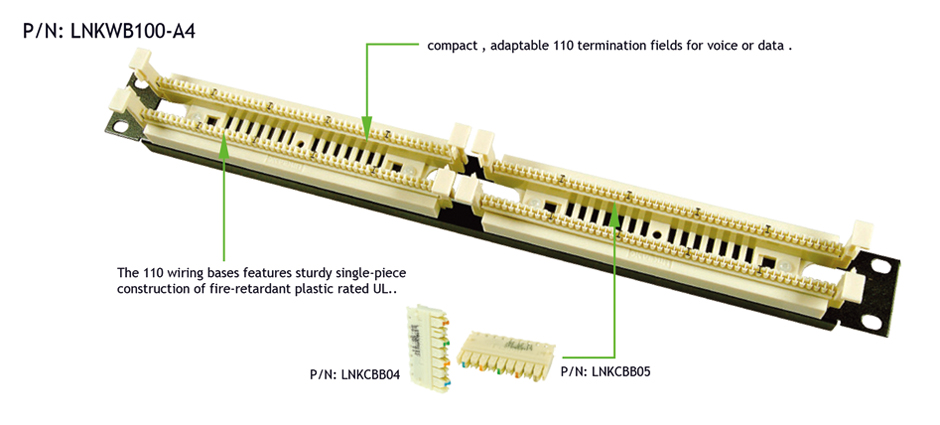

110 WRING BLOCKS P/N : LNKWB100-A4
Description :
Wall-mount 110 wiring blocks create compact, adaptable 110 termination field for voice and data by mounting 110 wiring bases to the wall or a backboard. Bases come in 50-, 110- or 300-pair densities. The 50-pair bases may be ordered with or without standoff legs which provide more room behind the base for cable.
Wall-mount 110 wiring blocks create compact, adaptable 110 termination field for voice and data by mounting 110 wiring bases to the wall or a backboard. Bases come in 50-, 110- or 300-pair densities. The 50-pair bases may be ordered with or without standoff legs which provide more room behind the base for cable.
Application :
- Type : 50 pairs rack mount 110 wiring block Available with legs or without legs to the wiring base
- Easy to adjust, easy to embed wires in
- Wiring blocks are designed to support voice and high-speed data application
- Offering a reliable and economical high-density system
- The terminal blocks accommodate 22-26 AWG with a insulation diameter of 0.4-0.64 mm
- IDC contact material : phosphor bronze with tin plating over nickel Available with T568 A. T568 B wiring pattern

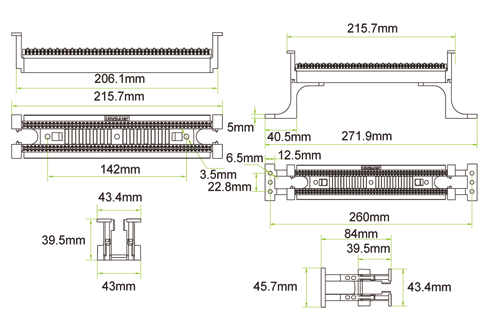

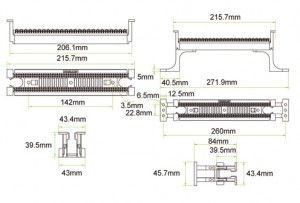

Product Figure :
Installment Instructions :
Insert each wire into the appropriate channel.
Terminate wires using Linkconn tool (P/N : LNKTLB01) or equivalent.
4-pair impact tool seats connecting blocks.
Install connecting block in the wiring block tightly.
Insert patch plug into connecting block, and ensure them in tight connection.
110 WRING BLOCKS

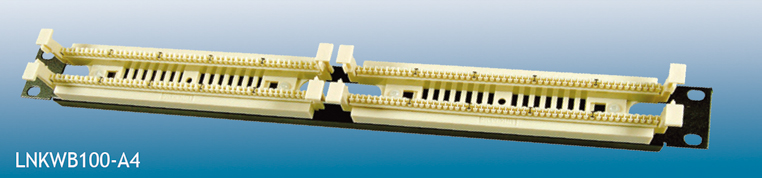

100 pair rank mount wiring block
50 pair wiring block without legs
50 pair wiring block with legs
100 pair wiring block without legs
100 pair wiring block with legs
4 pairs 110 connecting block
5 pairs 110 connecting block
Description :
Rack-mount 110 wiring products attach to standard 19" wide racks to create compact, adaptable 110 termination fields for voice and data. Panel come in 100-, 200-pair densities and termination 22-26 AWG solid copper wire.
Rack-mount 110 wiring products attach to standard 19" wide racks to create compact, adaptable 110 termination fields for voice and data. Panel come in 100-, 200-pair densities and termination 22-26 AWG solid copper wire.
Application :
- Block are available in 100-, 200-pair for 19 inch rack mounting
| Order Information | ||||||
| Part Number | Description | Standard color | Inner Box | Carton | Carton measurement | Carton weight |
| LNKWB100-A4 | 100 pair rank mount wring block | Beige | 1PCS | 10PCS | L53.5cmxW31.3cmxH23.4cm | 9.00 KG |
| LNKWB050-A3W | 50 pair wiring block without legs | Beige | 2PCS | 20PCS | L54cmxW49cmxH22cm | 5.00 KG |
| LNKWB050-A3Y | 50 pair wiring block with legs | Beige | 2PCS | 20PCS | L61cmxW54cmxH22cm | 5.70 KG |
| LNKWB100-A3W | 100 pair wiring block without legs | Beige | 1PCS | 10PCS | L54cmxW49cmxH22cm | 5.00 KG |
| LNKWB100-A3Y | 100 pair wiring block with legs | Beige | 1PCS | 10PCS | L61cmxW54cmxH22cm | 5.70 KG |
| LNKCBB04 | 4 pair 110 connecting block | Beige | 200PCS | 2000PCS | L53.5cmxW31.3cmxH23.4cm | 11.00 KG |
| LNKCBB05 | 5 pair 110 connecting block | Beige | 200PCS | 2000PCS | L53.5cmxW31.3cmxH23.4cm | 11.50 KG |
